Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control

Brand Name : WNK

Model Number : WNK6T-1

Certification : ISO

Place of Origin : Hefei, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per month

Delivery Time : 5-7 working days

Packaging Details : Standard export carton packing

Temperature range : 0~1300ºC, (Thermocouple K)

Voltage Input : 9~45V (9~24V, Ex)

Signal Output : 4~20mA/Hart/Profibus PA

Wetted Parts : Aluminium 304SS, other custom materials

Accuracy : 0.2%FS

Ex-proof : ExiaII CT4

Medium : Liquid, gas and steam

Contact Now

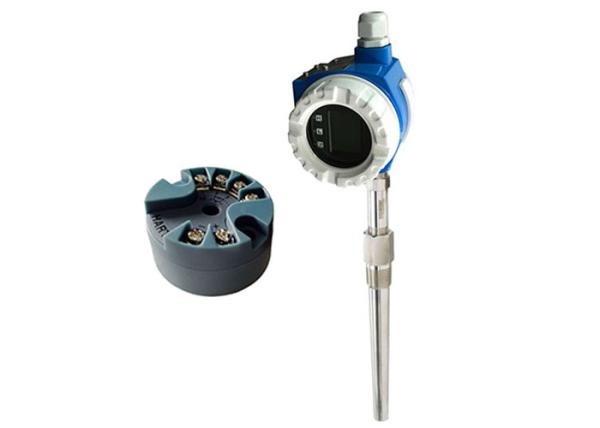

Intrinsically Safe Head Mounted Smart Temperature Transmitter For Industrial Temperature Control

WNK6T Series Temperature Transmitter with thermal couple(resistance) is an on-site installation type temperature transmitter of temperature series instruments. It consists of thermocouple, thermal resistance and temperature transmitter module, adopting two-wire system, with nonlinear calibration circuit, and can be used to directly measurement the temperature of liquid, gas media and special matter within -200C~+1300C during industrial process, converting temperature signal into current output signal of 4-20mADC which is linear to temperature signal, and sending to displayer, adjusting recorder or computer for total distributed control.

Advantages

1. High precision, digital precision up to :±0.01ºC
2.To reduce the overall cost of installation,maintenance and running
3. Install easily, more flexiable

4. LCD display, Menu-guided operation.

5, Self-diagnostics function

Data Sheet

Measuring media	liquid, gas and steam
Measuring range	-270~800 ºC (PT100 thermal resistor)
	0~1300ºC, (Thermocouple K)
Input	Thermocouple, RTD, MV, Resistive sensor
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA/Hart/Profibus PA
Digital Accuracy	±0.01ºC, PT100 input
Internal cold end compensation error	<0.25ºC±0.1%/10ºC
Temperature drift	±0.05%/10ºCfull scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	<0.005%/V full-scale range
Long term drift	<0.1/year

Product Tags:

liquid temperature sensor

industrial temperature sensor

Intrinsically Safe Head Mounted Temperature Transmitter For Industrial Temperature Control Images
